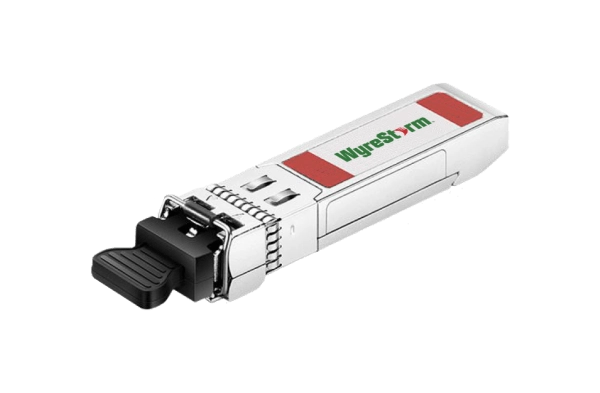

10G SFP+ Multimode Transceiver
$110.00
SKU: SR-10G-MM-SFPP
The SR-10G-MM-SFPP is a hot-pluggable SFP+ optical transceiver module designed for high-performance, short-range data communication and interconnect applications. It supports 10.3125 Gbps data rate over multimode fiber at distances up to 300 meters using an 850nm VCSEL laser. Engineered for use in 10GBASE-SR Ethernet, data centers, and Fibre Channel systems, this transceiver ensures reliable performance, low power consumption, and full compatibility with industry standards.
Available on backorder
Technical Specifications
Form Factor SFP+ (Hot-pluggable)
Data Rate 10.3125 Gbps
Laser Wavelength 850 nm
Connector LC duplex
Max Distance 300 meters (OM3 multimode fiber)
Power Supply +3.3V
Power Consumption < 1W
Operating Temperature 0°C to +70°C
Transmitter Output Power -7.3 to -1 dBm
Receiver Sensitivity. < -11.1 dBm
DDM / Diagnostics. Supported (Internally Calibrated)
Compliance. SFF-8431, SFF-8432, IEEE 802.3ae, RoHS
Applications. Data Centers, 10G Ethernet, Fibre Channel
