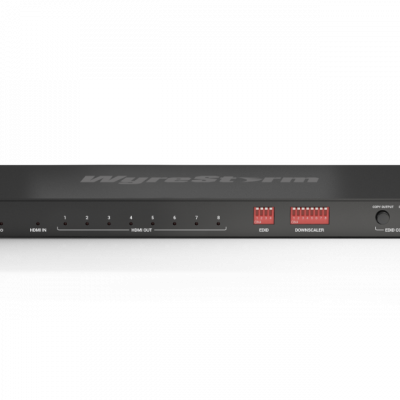

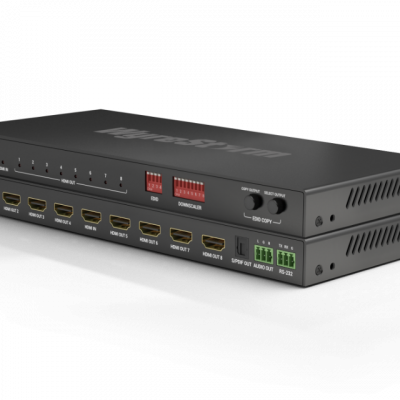

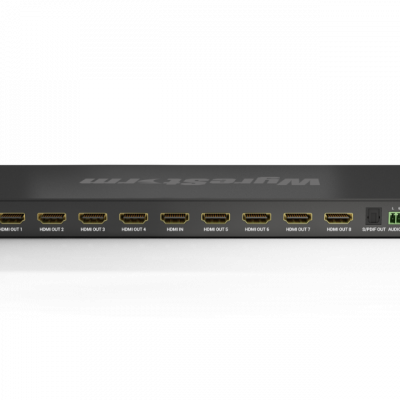

4K HDR 1:8 Splitter with Scaling Outputs

4K HDR 1:8 Splitter with Scaling Outputs - Image 2

4K HDR 1:8 Splitter with Scaling Outputs - Image 3

4K HDR 1:8 Splitter with Scaling Outputs

Original price was: $700.00.Current price is: $600.00.

SKU: SP-0108-SCL

The SP-0108-SCL is a small and compact, yet powerful HDMI splitter that can be used in many applications, from digital signage, education, to retail or hospitality. Each HDMI output of the SP-0108-SCL features a 4K to 1080p down scaler, allowing for mixed resolution displays to be used simultaneously without suffering from compatibility limitations. An analog and digital S/PDIF audio de-embed allows easy connection for external amplifiers or DSPs.

Download Resources

Technical Specification
Additional Features

Technical Specification

AUDIO & VIDEO

Inputs 1x HDMI: 19-Pin Type A

Outputs 8x HDMI Out: 19-pin type A | 1x 3-pin Phoenix | S/PDIF

Video Encoding Uncompressed 18Gbps

End to End Latency None

Audio Formats. 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos

Video Resolution (Max)

1920x1080p @60Hz 16bit

3840x2160p @60Hz 10bit 4:2:2 HDR10/10+

3840x2160p @60Hz 12bit 4:2:0 Dolby Vision

3840x2160p @50Hz 10bit 4:2:0 HLG

4096x2160p @60Hz 8bit 4:4:4

Supported Standards DCI | RGB | HDR10 | HDR 10+ | Dolby Vision | HLG | BT.2020

Maximum Pixel Clock 600Mhz

COMMUNICATION & CONTROL

HDMI HDCP 2.2 | EDID

RS-232 1x 3-pin Phoenix connection

POWER

Power Supply 12V DC 1A

Max Power Consumption 6.73W

Additional Features

Small compact design allows the splitter to be mounted locally and discreetly.
Download PC software or connect a control system to the provided RS232 port
Send API or use dipswitches to control EDID settings
CEC power off delay up to 30 mins upon loss of sink
